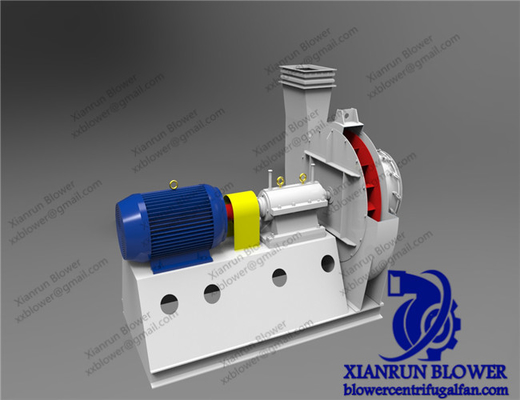

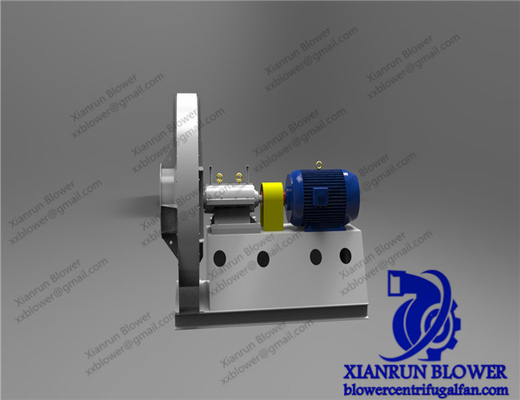

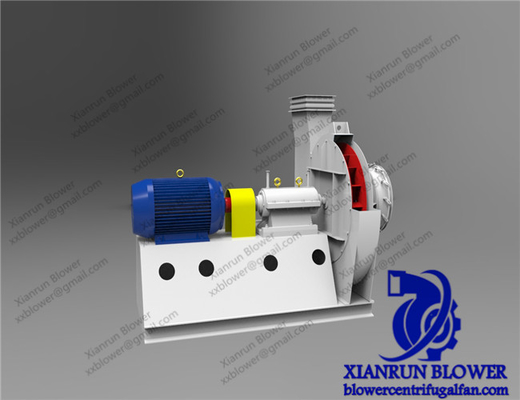

Product Details:
|
| Name: | High Efficiency Centrifugal Blower | Material: | Carbon Steel /Stainless Steel,Q235, Steel,316L |
|---|---|---|---|
| Power: | 5 - 350KW | Warranty: | 1 Year |
| Color: | Customer's Requirement | Air Volume: | 800 - 90000m3 / H |
| Applications: | Cooling Systems | Name: | Industrial Axial Flow Fan |
| Certification: | CE, ISO 9001 | ||
| High Light: | Q235 High Pressure Centrifugal Blower,High Pressure Centrifugal Blower 350KW,Boiler Industry Centrifugal Blower |
||
Key Features
| NO | Speed | NO | Pressure | Air flow | Motor Power | Motor | |
| r/min | Pa | m3/h | KW | Model | Power | ||
| KW | |||||||
| 9-19 4A | 2900 | 1 | 3584 | 824 | 1.5 | Y90L-2 | 2.2 |
| 2 | 3665 | 970 | 1.7 | ||||
| 3 | 3647 | 1116 | 1.9 | ||||
| 4 | 3597 | 1264 | 2.1 | ||||
| 5 | 3507 | 1410 | 2.3 | ||||
| 6 | 3384 | 1558 | 2.6 | ||||
| 7 | 3253 | 1704 | 2.6 | Y100L-2 | 3 | ||
| 9-19 4.5A | 2900 | 1 | 4603 | 1174 | 2.5 | ||
| 2 | 4684 | 1397 | 2.9 | Y112M-2 | 4 | ||
| 3 | 4672 | 1616 | 3.2 | ||||
| 4 | 4580 | 1839 | 3.6 | ||||
| 5 | 4447 | 2062 | 3.9 | ||||
| 6 | 4292 | 2281 | 4.4 | ||||
| 7 | 4112 | 2504 | 4.8 | Y132S1-2 | 5.5 | ||
| 9-19 5A | 2900 | 1 | 5697 | 1610 | 4.1 | Y132S-2 | 7.5 |
| 2 | 5768 | 1932 | 4.8 | ||||
| 3 | 5740 | 2254 | 5.4 | ||||
| 4 | 5639 | 2576 | 5.8 | ||||
| 5 | 5517 | 2844 | 6.4 | ||||
| 6 | 5323 | 3166 | 7.1 | ||||
| 7 | 5080 | 3488 | 7.9 | Y160M1-2 | 11 | ||
| 9-19 5.6A | 2900 | 1 | 7182 | 2262 | 7 | Y160M1-2 | 11 |
| 2 | 7273 | 2714 | 8.1 | ||||
| 3 | 7236 | 3167 | 9.1 | ||||
| 4 | 7109 | 3619 | 10.2 | ||||
| 5 | 6954 | 3996 | 11.2 | ||||
| 6 | 6709 | 4448 | 12.5 | ||||
| 7 | 6400 | 4901 | 13.9 | Y160L-2 | 18.5 | ||
| 9-19 6.3A | 2900 | 1 | 9149 | 3220 | 12.5 | Y160L-2 | 18.5 |
| 2 | 9265 | 3865 | 14.5 | ||||
| 3 | 9219 | 4509 | 16.4 | ||||
| 4 | 9055 | 5153 | 18.4 | ||||
| 5 | 8857 | 5690 | 20.2 | ||||
| 6 | 8543 | 6334 | 22.5 | ||||
| 7 | 8148 | 6978 | 25.1 | ||||
| Y200L1-2 | 30 | ||||||
| 9-19 7.1D | 2900 | 1 | 11717 | 4610 | 23.3 | Y200L2-2 | 37 |
| 2 | 11868 | 5532 | 27 | ||||
| 3 | 11807 | 6454 | 30.5 | ||||
| 4 | 11596 | 7376 | 34.1 | ||||
| 5 | 11340 | 8144 | 37.5 | ||||
| 6 | 10935 | 9066 | 41.8 | ||||
| 7 | 10426 | 9988 | 46.5 | Y250M-2 | 55 | ||
| 9-19 8D | 2900 | 1 | 15034 | 6594 | 42.3 | Y280S-2 | 75 |
| 2 | 15229 | 7913 | 49 | ||||
| 3 | 15151 | 9232 | 55.4 | ||||
| 4 | 14877 | 10550 | 62 | ||||
| 5 | 14546 | 11649 | 68.2 | ||||
| 6 | 14021 | 12968 | 75.9 | ||||
| 7 | 13362 | 14287 | 84.4 | Y315S-2 | 110 | ||
| 9-19 8D | 1450 | 1 | 3620 | 3297 | 5.5 | Y132M-4 | 7.5 |
| 2 | 3665 | 3957 | 6.1 | ||||
| 3 | 3647 | 4616 | 6.9 | ||||
| 4 | 3584 | 5275 | 7.7 | ||||
| 5 | 3507 | 5825 | 8.5 | ||||
| 6 | 3384 | 6484 | 9.5 | ||||
| 7 | 3231 | 7144 | 10.6 | Y160L-4 | 15 | ||
| 9-19 9D | 1450 | 1 | 4597 | 4695 | 9.5 | Y160L-4 | 15 |
| 2 | 4655 | 5633 | 11 | ||||
| 3 | 4632 | 6572 | 12.5 | ||||
| 4 | 4551 | 7511 | 14 | ||||
| 5 | 4453 | 8294 | 15.4 | ||||
| 6 | 4297 | 9233 | 17.1 | ||||
| 7 | 4101 | 10171 | 19 | Y180L-2 | 22 | ||
| 9-19 10D | 1450 | 1 | 5840 | 6440 | 15.7 | Y200L-4 | 30 |
| 2 | 5941 | 7942 | 18.8 | ||||
| 3 | 5891 | 9445 | 21.8 | ||||
| 4 | 5740 | 10947 | 24.8 | ||||
| 5 | 5495 | 12450 | 28 | ||||
| 6 | 5244 | 13952 | 31.4 | ||||
| 7 | 4958 | 15455 | 35.1 | Y225S-4 | 37 | ||
| 9-19 11.2D | 1450 | 1 | 7364 | 9047 | 27.7 | Y225M-4 | 45 |
| 2 | 7491 | 11158 | 33.2 | ||||
| 3 | 7428 | 13269 | 38.4 | ||||
| 4 | 7236 | 15380 | 43.7 | ||||
| 5 | 6927 | 17491 | 49.3 | ||||
| 6 | 6609 | 19602 | 55.4 | ||||
| 7 | 6246 | 21713 | 61.8 | Y280S-4 | 75 | ||
| 9-19 11.2D | 960 | 1 | 3182 | 5990 | 8 | Y180L-6 | 15 |
| 2 | 3237 | 7388 | 9.6 | ||||
| 3 | 3210 | 8785 | 11.2 | ||||
| 4 | 3128 | 10182 | 12.7 | ||||
| 5 | 2996 | 11580 | 14.3 | ||||
| 6 | 2860 | 12978 | 16.1 | ||||
| 7 | 2705 | 14375 | 17.9 | Y200L2-6 | 22 | ||
| 9-19 12.5D | 1450 | 1 | 9229 | 12577 | 47.9 | Y280S-4 | 75 |
| 2 | 9390 | 15512 | 57.4 | ||||
| 3 | 9310 | 15447 | 66.6 | ||||
| 4 | 9068 | 21381 | 75.6 | ||||
| 5 | 8678 | 24316 | 85.4 | ||||
| 6 | 8278 | 27251 | 95.9 | ||||
| 7 | 7822 | 30186 | 107 | Y315S-4 | 110 | ||
| 9-19 12.5D | 960 | 1 | 3975 | 8327 | 13.9 | Y200L-6 | 22 |
| 2 | 4043 | 10270 | 16.7 | ||||
| 3 | 4009 | 12213 | 19.3 | ||||
| 4 | 3907 | 14156 | 21.9 | ||||
| 5 | 3741 | 16099 | 24.8 | ||||
| 6 | 3571 | 18042 | 27.8 | ||||
| 7 | 3377 | 19985 | 31.1 | Y250M-6 | 37 | ||
| 9-19 14D | 1450 | 1 | 11668 | 17670 | 84.5 | Y315M-4 | 132 |
| 2 | 11874 | 21793 | 101.2 | ||||
| 3 | 11771 | 25916 | 117.3 | ||||
| 4 | 11464 | 30040 | 133.3 | ||||
| 5 | 10967 | 34163 | 150.5 | ||||
| 6 | 10457 | 38286 | 169.1 | ||||
| 7 | 9878 | 42409 | 188.6 | Y355M-4 | 220 | ||
| 9-19 14D | 960 | 1 | 5004 | 11699 | 24.5 | Y250M-6 | 37 |
| 2 | 5090 | 14428 | 29.4 | ||||
| 3 | 5047 | 17158 | 34 | ||||
| 4 | 4917 | 19888 | 38.7 | ||||
| 5 | 4709 | 22618 | 43.7 | ||||
| 6 | 4494 | 25348 | 49.1 | ||||
| 7 | 4249 | 28078 | 54.7 | Y315S1-6 | 75 | ||
| 9-19 16D | 1450 | 1 | 15425 | 26377 | 164.6 | Y355M3-4 | 315 |
| 2 | 15700 | 32531 | 197.2 | ||||
| 3 | 15563 | 38686 | 228.7 | ||||
| 4 | 15151 | 44841 | 259.9 | ||||
| 5 | 14488 | 50995 | 293.3 | ||||
| 6 | 13808 | 57150 | 329.6 | ||||
| 7 | 13035 | 63305 | 367.6 | JS138-6 | 410 | ||
| 9-19 16D | 960 | 1 | 6570 | 17463 | 47.8 | Y315S-6 | 75 |
| 2 | 6683 | 21538 | 57.2 | ||||
| 3 | 6627 | 25613 | 66.4 | ||||
| 4 | 6456 | 29687 | 75.4 | ||||
| 5 | 6180 | 33762 | 85.1 | ||||
| 6 | 5898 | 37837 | 95.7 | ||||
| 7 | 5575 | 41912 | 106.7 | Y315L1-6 | 110 | ||
Applications
