Product Details:
|
| Type: | Backward Inclined Centrifugal Fan | Voltage: | 220V/380V/440V/480V/660V |
|---|---|---|---|
| Blade Material: | Stainless Steel,Cast Iron,Steel Plate,Q345 (16Mn) Manganese Steel | Air Volume: | 800 - 90000m3 / H |
| Power: | 5 - 350KW | Material: | Steel,316L,Carbon Steel /Stainless Steel,Q235 |
| Warranty: | 1 Year | Color: | Customer's Requirement |
| Applications: | Cooling Systems | Name: | Industrial Axial Flow Fan |
| Certification: | CE, ISO 9001 | ||
| Highlight: | Backward Inclined Single Inlet Centrifugal Fan,Single Inlet Centrifugal Fan 5KW,ISO 9001 Backward Inclined Centrifugal Fan |
||

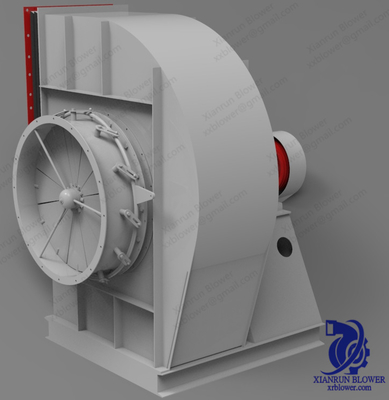

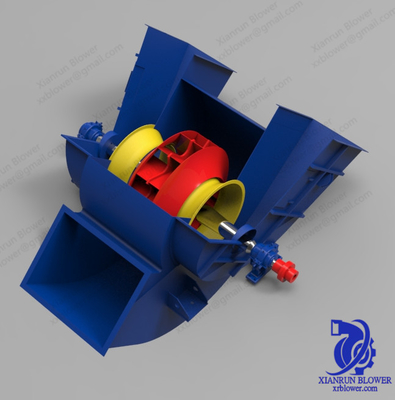

Centrifugal fan is composed of casing, spindle, impeller, bearing transmission mechanism and motor.
Casing: made of steel plate strong and reliable, can be divided into integral type and half open type, half open for easy maintenance.

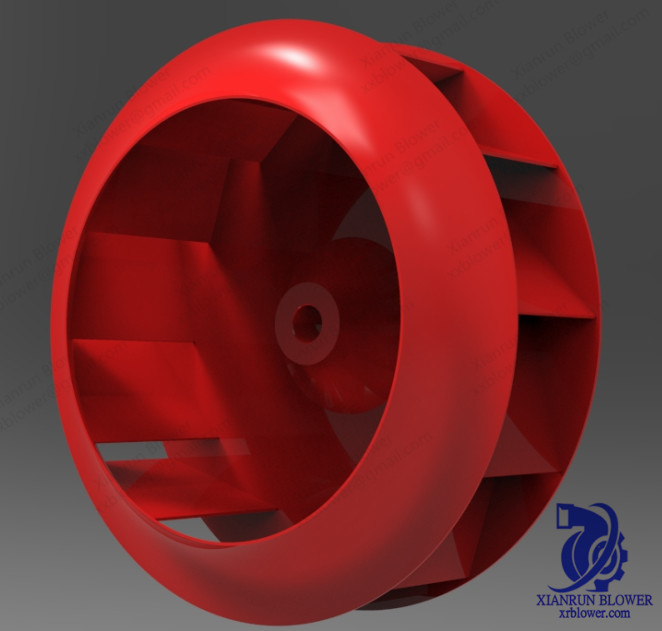

Impeller: composed of blades, curved front disc and flat back disc.
Rotor: static balance and dynamic balance should be done to ensure smooth rotation and good performance.

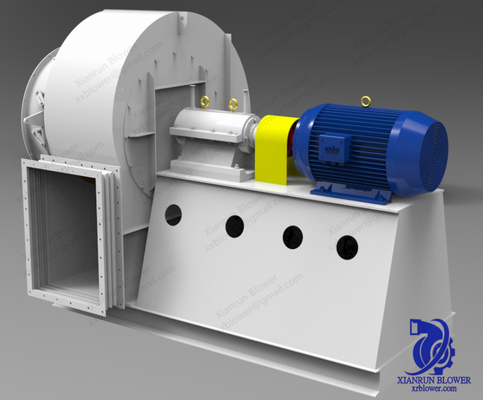

Transmission part: spindle, bearing box, rolling bearing and belt pulley (or coupling) .
Key Features
Material: Cast Iron, Carbon Steel, Stainless Steel.
Efficiency: 80%-90%
Applications
Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.
| Air volume/air flow | m3/h | |
| Total pressure or static pressure | Pa | |
| Medium temperature | °c | |
| Voltage | V | |
| Frequency | Hz | |
| Altitude of operation place | m |
