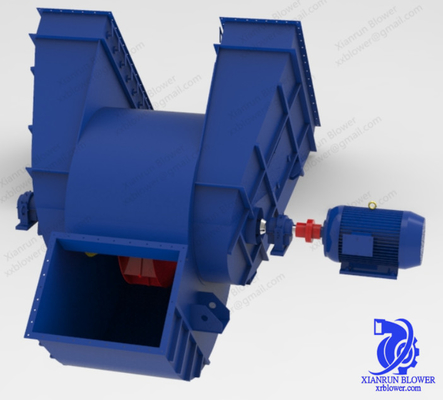

Q235 Custom Industrial Fan With Flow Range Of 1297-83305 M3/h And Air Temperature Of 20-1000 Celsius Degree

Custom Industrial Fan with Flow Range of 1297-83305 m3/h and Air Temperature of 20-1000 Celsius Degree

Customized services for industrial centrifugal fans are based on the individual needs of customers in different industrial scenarios such as ventilation, material transportation, cooling and dust removal. These needs include air volume, air pressure, rotational speed, installation space, medium characteristics (such as temperature, humidity, corrosiveness, dust content, etc.), as well as energy efficiency and noise control. From the selection and design of core components such as fan impellers, casings, and motors, to the overall structural layout and appearance size planning, and then to the material selection (such as carbon steel, stainless steel, fiberglass, etc.) and adaptation of special functions (explosion-proof, anti-corrosion, variable frequency speed regulation, etc.), a full - process targeted R & D and manufacturing are carried out. Industrial centrifugal fan solutions that are tailored to the specific working conditions and production requirements of customers are created to ensure that the fan performance is highly matched with the actual usage scenarios, achieving efficient, stable, and energy - saving operation.

Key Features

• Impeller diameter: 90~3500 mm
• Speed of mainshaft: 560~2900 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~83305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 80%-90%

Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.
