Product Details:
|
| Name: | High Pressure Industrial Air Blower | Blade Material: | Stainless Steel,Cast Iron,Steel Plate,Q345 (16Mn) Manganese Steel |
|---|---|---|---|
| Power: | 5 - 350KW | Color: | Customer's Requirement |
| Material: | Steel,316L,Carbon Steel /Stainless Steel,Q235 | Applications: | Power Generation |
| Applications: | Cooling Systems | Name: | Industrial Axial Flow Fan |
| Certification: | CE, ISO 9001 | ||
| Highlight: | High Pressure Centrifugal Air Blower,Forced Draft Fan In Boiler |
||

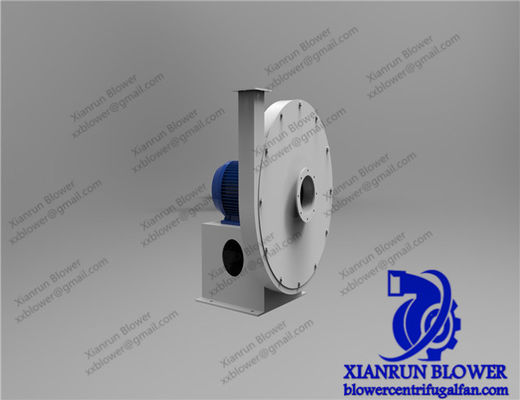

High Pressure Centrifugal Air Blower For Boiler Industry With High Efficiency,
Introduction
High pressure centrifugal air blower for boiler industry with high efficiency, flat performance curve and wide efficient area. The fan is generally used in forging furnace and high-pressure forced ventilation, and can be widely used for conveying materials, conveying air and non-corrosive gas.
Featuers
| Model | Speed | NO. | Pressure | Air flow | Motor Power | Motor | |
| r/min | Pa | m3/h | KW | Model | Power | ||
| KW | |||||||
| 9-19 4A | 2900 | 1 | 3584 | 824 | 1.5 | Y90L-2 | 2.2 |
| 2 | 3665 | 970 | 1.7 | ||||
| 3 | 3647 | 1116 | 1.9 | ||||
| 4 | 3597 | 1264 | 2.1 | ||||
| 5 | 3507 | 1410 | 2.3 | ||||
| 6 | 3384 | 1558 | 2.6 | ||||
| 7 | 3253 | 1704 | 2.6 | Y100L-2 | 3 | ||
| 9-19 4.5A | 2900 | 1 | 4603 | 1174 | 2.5 | ||
| 2 | 4684 | 1397 | 2.9 | Y112M-2 | 4 | ||
| 3 | 4672 | 1616 | 3.2 | ||||
| 4 | 4580 | 1839 | 3.6 | ||||
| 5 | 4447 | 2062 | 3.9 | ||||
| 6 | 4292 | 2281 | 4.4 | ||||
| 7 | 4112 | 2504 | 4.8 | Y132S1-2 | 5.5 | ||
| 9-19 5A | 2900 | 1 | 5697 | 1610 | 4.1 | Y132S-2 | 7.5 |
| 2 | 5768 | 1932 | 4.8 | ||||
| 3 | 5740 | 2254 | 5.4 | ||||
| 4 | 5639 | 2576 | 5.8 | ||||
| 5 | 5517 | 2844 | 6.4 | ||||
| 6 | 5323 | 3166 | 7.1 | ||||
| 7 | 5080 | 3488 | 7.9 | Y160M1-2 | 11 | ||
| 9-19 5.6A | 2900 | 1 | 7182 | 2262 | 7 | Y160M1-2 | 11 |
| 2 | 7273 | 2714 | 8.1 | ||||
| 3 | 7236 | 3167 | 9.1 | ||||
| 4 | 7109 | 3619 | 10.2 | ||||
| 5 | 6954 | 3996 | 11.2 | ||||
| 6 | 6709 | 4448 | 12.5 | ||||
| 7 | 6400 | 4901 | 13.9 | Y160L-2 | 18.5 | ||
| 9-19 6.3A | 2900 | 1 | 9149 | 3220 | 12.5 | Y160L-2 | 18.5 |
| 2 | 9265 | 3865 | 14.5 | ||||
| 3 | 9219 | 4509 | 16.4 | ||||
| 4 | 9055 | 5153 | 18.4 | ||||
| 5 | 8857 | 5690 | 20.2 | ||||
| 6 | 8543 | 6334 | 22.5 | ||||
| 7 | 8148 | 6978 | 25.1 | ||||
| Y200L1-2 | 30 | ||||||
| 9-19 7.1D | 2900 | 1 | 11717 | 4610 | 23.3 | Y200L2-2 | 37 |
| 2 | 11868 | 5532 | 27 | ||||
| 3 | 11807 | 6454 | 30.5 | ||||
| 4 | 11596 | 7376 | 34.1 | ||||
| 5 | 11340 | 8144 | 37.5 | ||||
| 6 | 10935 | 9066 | 41.8 | ||||
| 7 | 10426 | 9988 | 46.5 | Y250M-2 | 55 | ||
| 9-19 8D | 2900 | 1 | 15034 | 6594 | 42.3 | Y280S-2 | 75 |
| 2 | 15229 | 7913 | 49 | ||||
| 3 | 15151 | 9232 | 55.4 | ||||
| 4 | 14877 | 10550 | 62 | ||||
| 5 | 14546 | 11649 | 68.2 | ||||
| 6 | 14021 | 12968 | 75.9 | ||||
| 7 | 13362 | 14287 | 84.4 | Y315S-2 | 110 | ||
| 9-19 8D | 1450 | 1 | 3620 | 3297 | 5.5 | Y132M-4 | 7.5 |
| 2 | 3665 | 3957 | 6.1 | ||||
| 3 | 3647 | 4616 | 6.9 | ||||
| 4 | 3584 | 5275 | 7.7 | ||||
| 5 | 3507 | 5825 | 8.5 | ||||
| 6 | 3384 | 6484 | 9.5 | ||||
| 7 | 3231 | 7144 | 10.6 | Y160L-4 | 15 | ||
| 9-19 9D | 1450 | 1 | 4597 | 4695 | 9.5 | Y160L-4 | 15 |
| 2 | 4655 | 5633 | 11 | ||||
| 3 | 4632 | 6572 | 12.5 | ||||
| 4 | 4551 | 7511 | 14 | ||||
| 5 | 4453 | 8294 | 15.4 | ||||
| 6 | 4297 | 9233 | 17.1 | ||||
| 7 | 4101 | 10171 | 19 | Y180L-2 | 22 | ||
| 9-19 10D | 1450 | 1 | 5840 | 6440 | 15.7 | Y200L-4 | 30 |
| 2 | 5941 | 7942 | 18.8 | ||||
| 3 | 5891 | 9445 | 21.8 | ||||
| 4 | 5740 | 10947 | 24.8 | ||||
| 5 | 5495 | 12450 | 28 | ||||
| 6 | 5244 | 13952 | 31.4 | ||||
| 7 | 4958 | 15455 | 35.1 | Y225S-4 | 37 | ||
| 9-19 11.2D | 1450 | 1 | 7364 | 9047 | 27.7 | Y225M-4 | 45 |
| 2 | 7491 | 11158 | 33.2 | ||||
| 3 | 7428 | 13269 | 38.4 | ||||
| 4 | 7236 | 15380 | 43.7 | ||||
| 5 | 6927 | 17491 | 49.3 | ||||
| 6 | 6609 | 19602 | 55.4 | ||||
| 7 | 6246 | 21713 | 61.8 | Y280S-4 | 75 | ||
| 9-19 11.2D | 960 | 1 | 3182 | 5990 | 8 | Y180L-6 | 15 |
| 2 | 3237 | 7388 | 9.6 | ||||
| 3 | 3210 | 8785 | 11.2 | ||||
| 4 | 3128 | 10182 | 12.7 | ||||
| 5 | 2996 | 11580 | 14.3 | ||||
| 6 | 2860 | 12978 | 16.1 | ||||
| 7 | 2705 | 14375 | 17.9 | Y200L2-6 | 22 | ||
| 9-19 12.5D | 1450 | 1 | 9229 | 12577 | 47.9 | Y280S-4 | 75 |
| 2 | 9390 | 15512 | 57.4 | ||||
| 3 | 9310 | 15447 | 66.6 | ||||
| 4 | 9068 | 21381 | 75.6 | ||||
| 5 | 8678 | 24316 | 85.4 | ||||
| 6 | 8278 | 27251 | 95.9 | ||||
| 7 | 7822 | 30186 | 107 | Y315S-4 | 110 | ||
| 9-19 12.5D | 960 | 1 | 3975 | 8327 | 13.9 | Y200L-6 | 22 |
| 2 | 4043 | 10270 | 16.7 | ||||
| 3 | 4009 | 12213 | 19.3 | ||||
| 4 | 3907 | 14156 | 21.9 | ||||
| 5 | 3741 | 16099 | 24.8 | ||||
| 6 | 3571 | 18042 | 27.8 | ||||
| 7 | 3377 | 19985 | 31.1 | Y250M-6 | 37 | ||
| 9-19 14D | 1450 | 1 | 11668 | 17670 | 84.5 | Y315M-4 | 132 |
| 2 | 11874 | 21793 | 101.2 | ||||
| 3 | 11771 | 25916 | 117.3 | ||||
| 4 | 11464 | 30040 | 133.3 | ||||
| 5 | 10967 | 34163 | 150.5 | ||||
| 6 | 10457 | 38286 | 169.1 | ||||
| 7 | 9878 | 42409 | 188.6 | Y355M-4 | 220 | ||
| 9-19 14D | 960 | 1 | 5004 | 11699 | 24.5 | Y250M-6 | 37 |
| 2 | 5090 | 14428 | 29.4 | ||||
| 3 | 5047 | 17158 | 34 | ||||
| 4 | 4917 | 19888 | 38.7 | ||||
| 5 | 4709 | 22618 | 43.7 | ||||
| 6 | 4494 | 25348 | 49.1 | ||||
| 7 | 4249 | 28078 | 54.7 | Y315S1-6 | 75 | ||
| 9-19 16D | 1450 | 1 | 15425 | 26377 | 164.6 | Y355M3-4 | 315 |
| 2 | 15700 | 32531 | 197.2 | ||||
| 3 | 15563 | 38686 | 228.7 | ||||
| 4 | 15151 | 44841 | 259.9 | ||||
| 5 | 14488 | 50995 | 293.3 | ||||
| 6 | 13808 | 57150 | 329.6 | ||||
| 7 | 13035 | 63305 | 367.6 | JS138-6 | 410 | ||
| 9-19 16D | 960 | 1 | 6570 | 17463 | 47.8 | Y315S-6 | 75 |
| 2 | 6683 | 21538 | 57.2 | ||||
| 3 | 6627 | 25613 | 66.4 | ||||
| 4 | 6456 | 29687 | 75.4 | ||||
| 5 | 6180 | 33762 | 85.1 | ||||
| 6 | 5898 | 37837 | 95.7 | ||||
| 7 | 5575 | 41912 | 106.7 | Y315L1-6 | 110 | ||
Applications
Industrial boiler
Power generation
Chemical processing
Combustion-support
Cooling systems
Corrosive gas
Dryer
Dust collection
Forced draft
