Product Details:
|
| Voltage: | 220V/380V/440V/480V/660V | Blade Material: | Stainless Steel,Cast Iron,Steel Plate,Q345 (16Mn) Manganese Steel |
|---|---|---|---|
| Power: | 5 - 350KW | Warranty: | 1 Year |
| Air Volume: | 800 - 90000m3 / H | Color: | Customer's Requirement |
| Material: | Steel,316L,Carbon Steel /Stainless Steel,Q235 | Applications: | Cooling Systems |
| Name: | Industrial Axial Flow Fan | Certification: | CE, ISO 9001 |

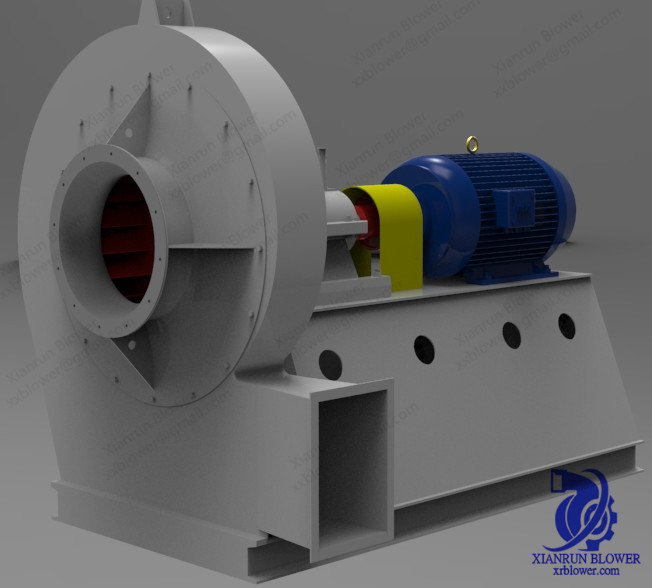

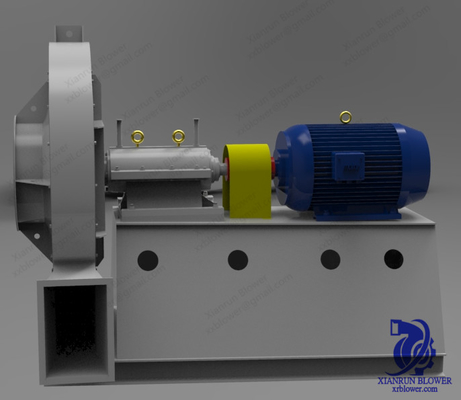

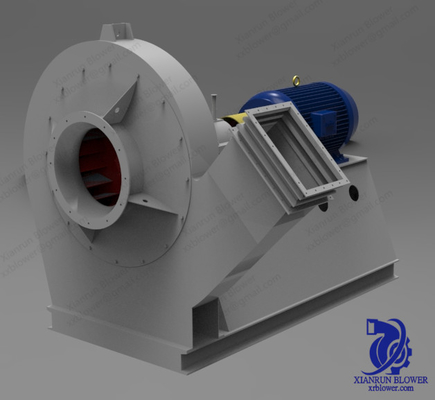

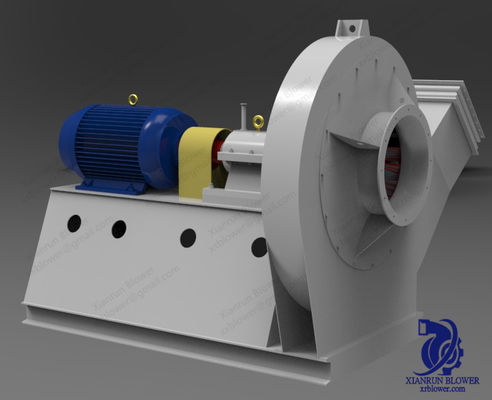

| High Light: | Forward Curved Large Centrifugal Fan,Large Centrifugal Fan Blower,Centrifugal Type Blower 3000Pa |
||
Classification of high capacity large fan:
1. Classified according to the flow direction of the medium inside the fan
Divided into centrifugal, axial and mixed flow fan
2. Classification by high and low production pressure (calculated in absolute pressure)
Ventilator - Exhaust pressure is lower than 112700Pa.
Blower - Exhaust pressure between 112700PA-343000Pa.
Compressor - Exhaust pressure above 343000Pa
3. The high and low pressure of the ventilator is classified as follows (in the standard state)
Low pressure centrifugal fan: full pressure P≤1000Pa.
Medium pressure centrifugal fan: full pressure P=1000-8000Pa.
High pressure centrifugal fan: full pressure P=8000-30000Pa.
Low pressure axial flow fan: full pressure P≤500Pa.
High pressure axial flow fan: full pressure P=500-3000Pa
4. Classification according to leaf exit Angle
It can be divided into backbending (backward) type, radial type and forward bending (forward) type fans, as shown in Figure 5.
The outlet Angle β2 of the backbending fan blade is less than 90°.
The outlet Angle of radial fan blade β2 = 90°.
The outlet Angle of the forward bending fan blade β2 is > 90
Key Features
Material: Cast Iron, Carbon Steel, Stainless Steel.
Efficiency: 70%-90%
Applications
Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.
| Air volume/air flow | m3/h | |
| Total pressure or static pressure | Pa | |
| Medium temperature | °c | |
| Voltage | V | |
| Frequency | Hz | |
| Altitude of operation place | m |
Order details:
Production capacity: 300 sets per month
MOQ: 1 Set
Port: Qingdao, Tianjin, Shanghai port and other ports
Delivery time: 15 days after receiving down payment
Payment: T/T, L/C, D/A, D/P etc.
Price term: FOB, CIF, CFR, DDU, DDP and so on
Tel: 13409216083
