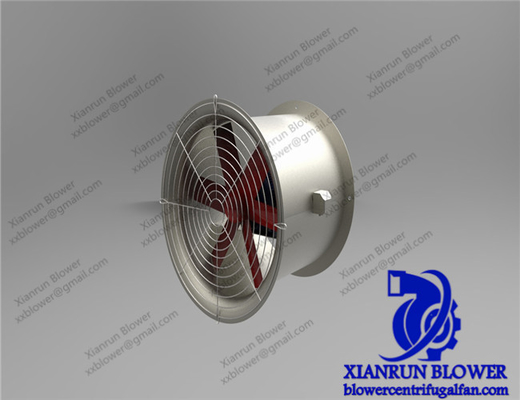

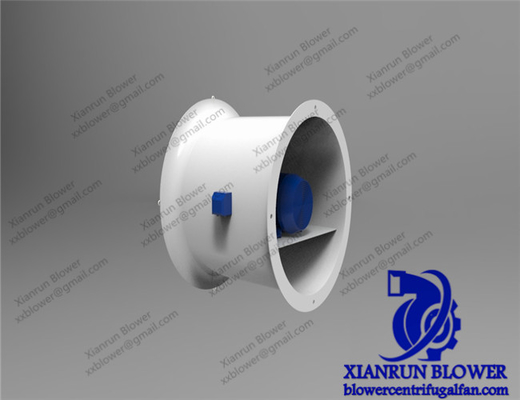

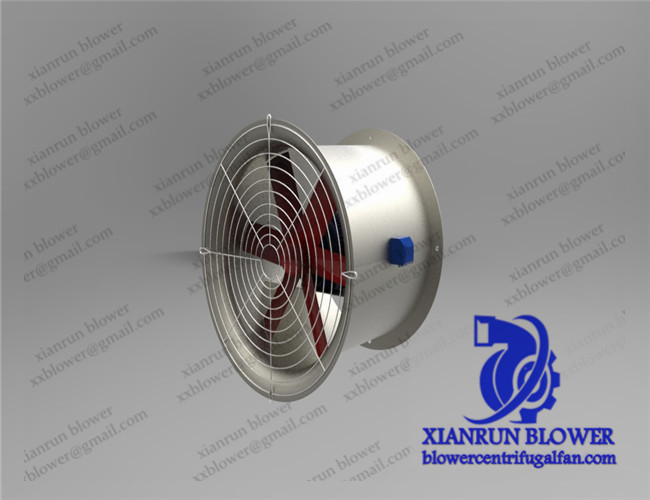

Tubular Belt Driven Axial Fan , Stainless Steel Boiler Industrial Drum Fan

Axial fans axial extractor fan tubular axial fan belt driven axial fan dc axial fan industrial drum fan

Installation of axial flow fan

A. The installation horizontal and vertical degree of the whole factory axial flow fan should be measured on the base and air duct, and the deviation should not be greater than 1‰.

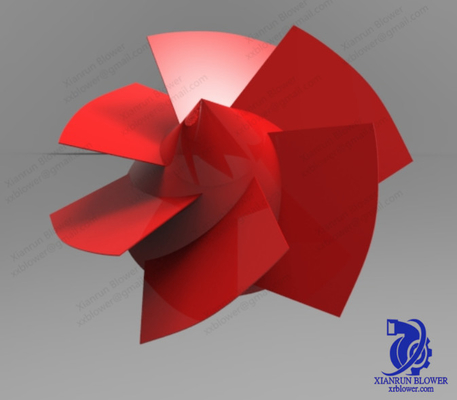

B. The installation Angle of the blade shall be reviewed and corrected according to the provisions of the equipment technical documents, and the allowable deviation is ±2° and the nut of the fixed blade shall be locked; If it is necessary to remove the blade from the hub, it must be placed according to the mark to prevent the position disorder and swap to destroy the balance of the rotor; If the blade is damaged and needs to be replaced, it must be carried out according to the provisions of the equipment technical document.

C. The assembly of rotor and bearing shall be carried out in accordance with the provisions of the equipment technical documents; The connecting bolts of the rotor components of the fan are tightened according to the specified torque.

D. The gap between the impeller and the main air duct (or casing) should be evenly distributed, the installation Angle of the blade should be consistent, and meet the requirements of smooth operation in the same plane. The assembly of large axial flow fans should be carried out according to the provisions of the equipment technical documents.


Key Features

• Impeller diameter: 90~3500 mm
• Speed of mainshaft: 560~2900 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~83305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 80%-90%

Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.
