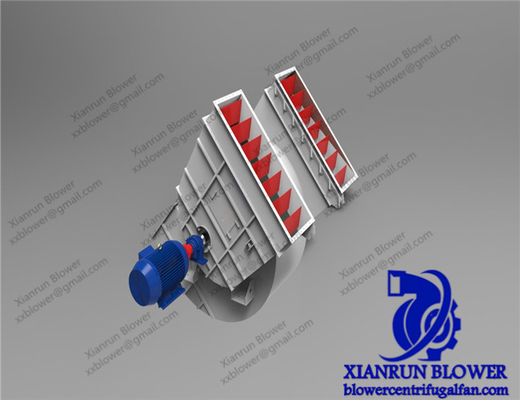

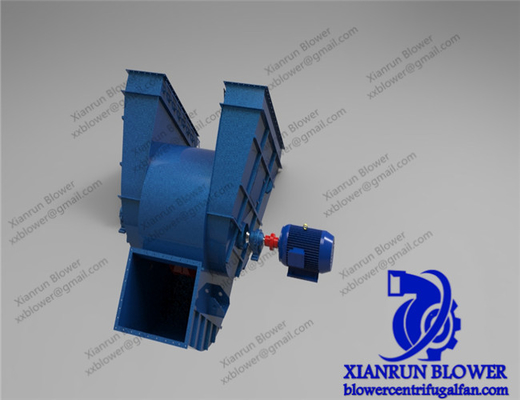

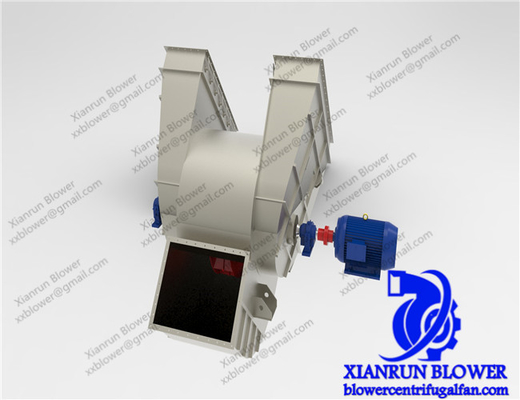

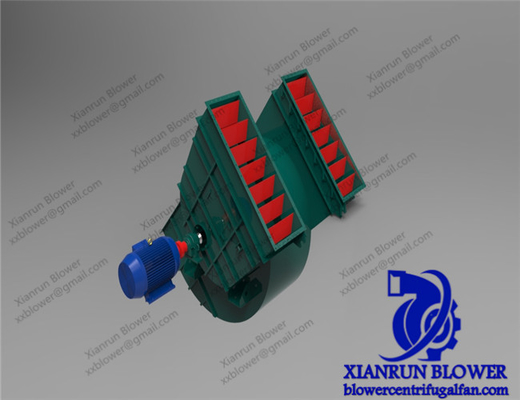

90-3500mm Double Inlet Centrifugal Fan Blower F Model For Cement Production

F model Double inlet fan forward curved centrifugal fan fluid machinery air conditioning equipment f model cement production

f model:Structural characteristics of double suction

1.1 compared to the past, because of the low resistance of the preheater, the constant improvement of the ability of rotary kiln, the fan impeller diameter decrease relatively, impeller width, speed increased, this not only reduces the manufacturing difficulty, also meet the requirements of the cement production low resistance winds, coaxial double impeller, combined with the expanding of inlets, makes the fan axis, compared with the past has become longer, In order to improve the limit speed of the fan, the middle of the shaft becomes thicker than in the past, so the characteristics of the large double suction F type fan are two support spans are large, one shaft double impeller, and two air intakes.

1.2 in a large double suction fan on the configuration of the f model, due to large equipment, and at a relatively high temperature operation, when stop, to prevent the shaft because of temperature stress and bending under the action of gravity, are usually equipped with quick action, used for cold, to turn over of shaft, the low-speed rotation when hot, because the fan air volume is very big, In order to meet the wind pulling requirements under different production states, it is generally equipped with variable frequency drive motor or speed regulating bias coupler to adjust the speed, which is used for air volume regulation under different production states.

Installation and adjustment of large double suction f Model.

2.1 Matters needing attention during installation:

Fan installation accuracy directly affects the operation accuracy and life of the fan and function of the play, so must cause enough attention, in order to complete installation work, must do a good job in three digest information, master the installation considerations, the second is strict examination of the fan parts, measuring size manufacturing, the difference correction and drawings, a third is carried out on the basis of strict acceptance, It includes elevation, center line, foundation hole, etc., and the position relationship between the compound fan and the adjacent equipment must be modified if there is a problem. At the same time, attention should be paid to the difference between the actual size of the fan and the drawing. Then according to the above three preparations, the construction technical plan of the fan is made in a targeted way. In addition to the normal technical measures, the difference between the actual size and the design size should be pointed out in the plan to avoid inadvertent rework during installation.


Key Features

• Impeller diameter: 90~3500 mm
• Speed of mainshaft: 560~2900 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~83305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 80%-90%

Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.
