Q345 Centrifugal Blowers And Fans 800m3/H - 90000m3/H Color Custom

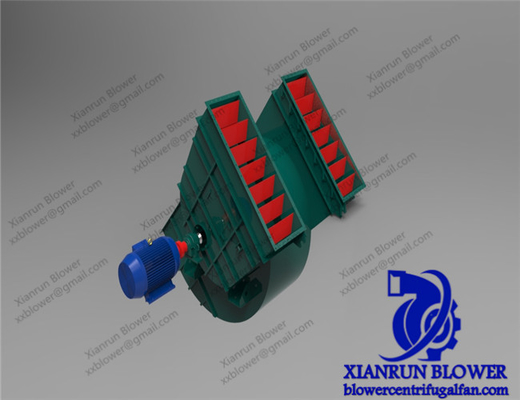

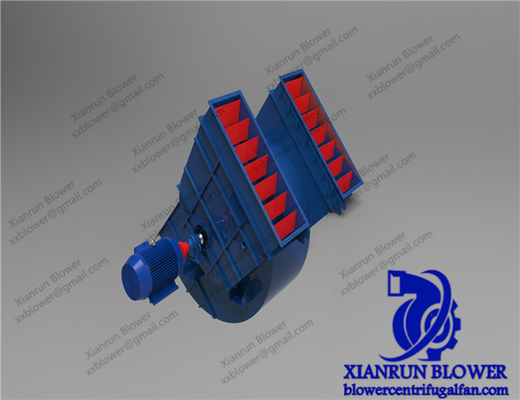

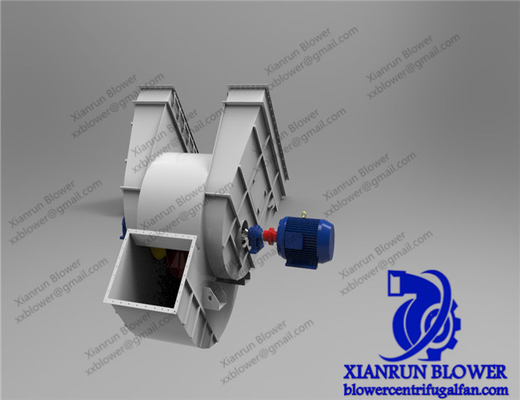

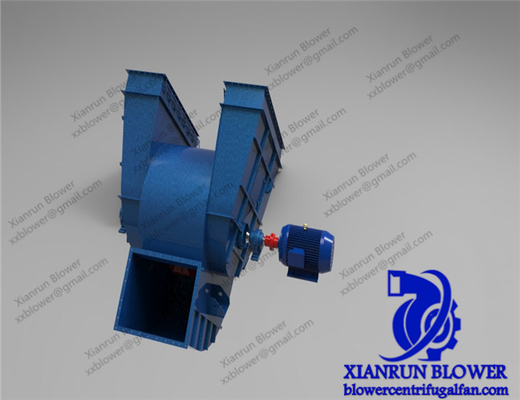

Double Inlet Fan Industrial Impeller Design Centrifugal Ventilation Fan Cantilever Structure Dust Removal System End Can

A. The double-sided intake fan must have A shaft through the impeller. The shaft must be supported on the bearing seat on both sides, which has an impact on the air inlet. Due to the double inlet structure, a large air volume can be obtained.

B, air flows into the double suction impeller from both sides of the impeller, the bearing load on both sides is the same, which can basically eliminate the axial force on the impeller, and the wear situation of the two bearings is basically the same.

C, double suction centrifugal fan adopts double support structure, high operation reliability, safety and stability.

Because there are two air inlets, it is usually made into a fan box or machine room to wrap the whole fan.

Key Features

• Impeller diameter: 90~3500 mm
• Speed of mainshaft: 560~2900 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~43305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 80%-90%
