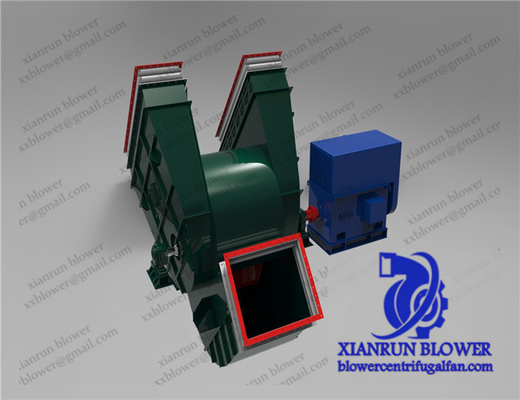

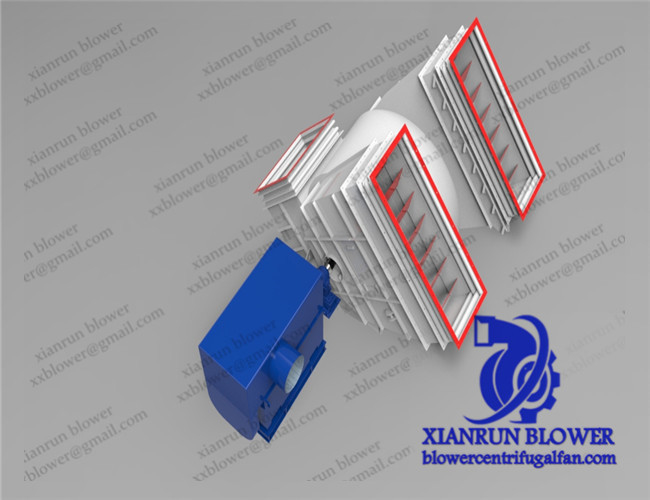

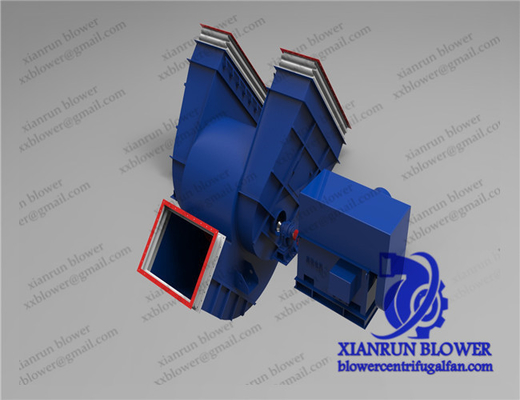

Industrial Double Inlet Centrifugal Fan backward Low Noise Blower Fan

Double inlet fan backward centrifugal fan centrifugal extractor fan low noise fan industrial exhaust fans

4-72 type double inlet centrifugal fan is mainly used in hotel, the venue, cinemas and theatres, workshops and other places of ventilated take a breath, medium temperature is not more than 80 ℃, shall not contain emplastic and corrosive, explosive, flammable gas, also can choose other similar performance, when conveying inflammable, explosive, corrosive gas, please contact the production units.

The fan adopts double suction intake structure, usually the machine number is 6E, 8E, 10E, 12E, 14E, 16E, 20E.

The fan can be made into two forms of right rotation or left rotation, from one side of the pulley to the other side of the pulley impeller, clockwise rotation is called the right rotation fan, represented by "right"; Conversely, it is called a left cyclone and is indicated by "left".

The position of the air outlet of the fan is expressed by the Angle of the air outlet of the casing. It is usually designed with a single Angle of 0°, 90° and 180°. When the user needs to use other outlet angles, it can be designed and produced for you separately.

Second, the structure of Fan oil night road, casing, air inlet, bearing seat, motor and other components, with compact structure, easy installation, easy maintenance and other characteristics.

Night road -- consists of two impellers with different rotation directions, each impeller has 10 airfoil blades and curved front disks, static and dynamic balance correction and overspeed operation experiments, the unit runs smoothly and reliably.

Casing -- a cochlear shell welded from a steel plate with a bearing bracket and a frame.

Air inlet - the steel plate is made of arc conical flow channel.

Bearing housing - participates in the double row centripetal spherical bearing, and is lubricated with calcium sodium base grease.

Key Features

• Impeller diameter: 90~3500 mm
• Speed of mainshaft: 560~3200 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~98305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 80%-90%
